Three Horse Miniature Horse Hauler

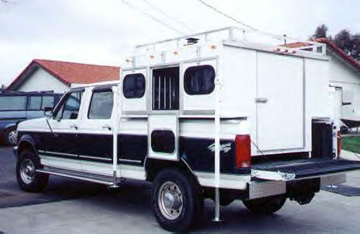

The three horse is a side load design with the horse facing the driver's side. It features drop down caged feed doors with slider windows that drop down separatey. Swing out dividers can be quickly removed for carrying mare and foal. The passenger side features a lockable 16"X72" carpeted black compartment. The horse haulers dimensions are 72" long X 80" wide with a 48" floor base and weighs approximately 350 lbs. Shown with the optional rear window with safety bars and rear spot light for night operations. Also shown with optional white polar screw drive jacks.
Specifications:
The Three Horse is a side load hauler with a rubber matted feed manger as well as carpeted tack compartment. The manger is 16 inches wide and 72 inches long. It has two sets of bars separating each stall. This allows the horses to see each other but not have contact. There are two windowed drop down feed doors with paddle handles that are keyed the same. The doors are also designed with a separate drop down cage for added security. The middle stall shares a common window with both the front and rear stall. The tack compartment is also 16 inches wide, 72 inches long, carpeted, it has numerous hooks for hanging tack and show clothes, and boasts a 12 volt lighting system for night use. The floor of the three horse is 48 inches wide and 72 inches long. It has two swing out removable dividers that allow for mare and foal. The overall dimensions of the three horse is 80 inches wide, 72 inches long, and 51 _ inches high. There are three 22 _ inch stalls with 47 _ inches of headroom. This hauler is designed for the optional polar white corner screw drive jacks which allows you to back under this hauler and drive away. The basic hauler weighs approximately 350 pounds and can be loaded by two people without using jacks.
The Short Three Horse is designed for the _ ton crew cab pickups. It replicates the three horse design but is only 65 inches in length. The front stall and middle stall are 19 inches wide and the outer stall is 22 _ inches wide. This hauler weighs approximately 325 pounds and is the perfect for the shorter than short bed pickup.
The Advantages:
There are many advantages to owning a Miniature Horse Hauler by Bob. No trailer towing and no wondering what your horses are doing in the trailer, you can see them through the pass thru window on the hauler that lines up with your truck cab window. You can open the pass thru windows and heat or cool your minis. Your horses receive the same ride you do. You can enjoy the safety of traveling at the speed limits or in heavy traffic without worrying about your horses in that darn trailer. You don’t have to worry about flat tires, brakes needing replaced, working tail lights, trailer sway, or added stress on your tow vehicle. Miniature Horse Haulers by Bob are lightweight, aerodynamically designed to reduce vehicle and person fatigue while saving you gas money and maintenance cost with a trailer.
Click here to see Options
Click here to see Construction
